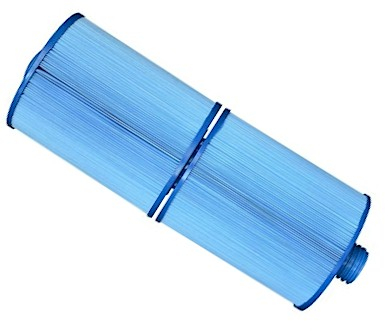

This is a two part stackable filter. The full length of the 2 filters when put together is 16 7/8 inches long from the media top to the media bottom. If you have a leag screen, it may not fit over the top of this filter system. The two filters are joined by an adapter tube. The top filter has a handle on top, and a tube on the bottom (which joins with the bottom filter). The bottom filter has a raised hole on the top (which the top tube inserts into), and a 1 1/2" SAE threaded adapter on the bottom.
Click Here To see / purchase the Lower unit (817-0012).
Click Here To see / purchase the Upper unit (817-0011).

Spa-Daddy SD-01141

Pleatco: PWW100P3-M-SET  |  Unicel: 6CH941AM / 6CH-942AM

  • Diameter: 6"
  • Length: 16 7/8"
  • Top: Handle
  • Bottom: 1 1/2" SAE Threaded
  • Filter Area: 100 sq ft
  • Filter Material: SD Trilobal Antimicrobial (3 oz/yard)
Alternate Filter Names: 817-0011  |  817-0012  |  25253  |  25254  |  25253-800  |  17-175-1728  |  SD-00032  |  090164410005  |  817-0011 - 817-0012  |  17-175-1724  |  14018  |  25254-800  |  upper cart pww100st  |  apcc7382  |  090164410036  |  PWW100ST-P3-M  |  6CH-941RA  |  6CH941RA / 6CH-942RA  |  817-0011 / 817-0012  |  60402M & 60403M  |  Filbur FC-0361  |  PWW100ST-P3  |  PWW100-ST W/ PAD-3L AD  |  PWW100ST-F2S

Used in pools / spas made by: Custom Molded Products  |  Haven Spas  |  Phoenix Spas  |  Sunbelt Spas  |  Superior Spas  |  Waterway Plastics and other manufacturers
